Semiconductor Industry

Vacuum brazing is essential in the semiconductor industry, where ultra-clean, high-precision bonding is required for the fabrication of advanced electronic components. It is widely used in the production of heat sinks, sensor housings, wafer processing tools, and vacuum chamber assemblies. The process enables the joining of dissimilar metals and complex structures without introducing flux or contaminants, making it ideal for maintaining the ultra-high vacuum and purity levels demanded in semiconductor environments. Vacuum brazing ensures superior thermal conductivity, structural integrity, and leak-tight sealing—critical for temperature-sensitive and high-performance semiconductor devices.

Semiconductor Industry

Articles

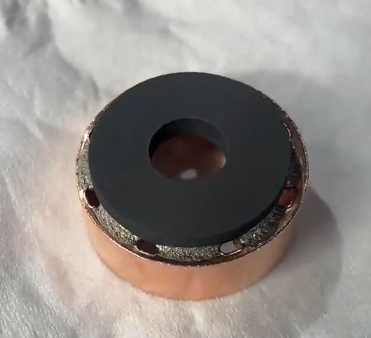

Vacuum brazing of graphite and copper
Vacuum brazing of graphite and copper

Vacuum brazing of graphite and copper is a specialized joining process used in high-temperature, high-thermal-conductivity applications such as semiconductor equipment, heat sinks, EDM components, and aerospace thermal assemblies.

READ MORE
