Silicon Nitride Heating Plate Vacuum Brazing for Advanced Ceramic Applications

As industries such as semiconductors, electronics, and advanced manufacturing continue to demand higher precision and reliability, silicon nitride heating plates have become an essential component in thermal processing systems. Known for their outstanding mechanical strength, thermal shock resistance, and electrical insulation, these ceramic heating plates are widely used in applications where conventional materials cannot withstand extreme operating conditions.

However, manufacturing a high-quality silicon nitride heating plate often requires joining ceramic materials with metallic electrodes or conductive components. This process presents significant technical challenges due to the differences in material properties. Vacuum brazing has emerged as the preferred joining technology, enabling manufacturers to create strong, oxidation-free joints while preserving the integrity of both the ceramic and metal components.

Why Silicon Nitride Is Ideal for High-Temperature Heating Plates

Silicon Nitride is one of the most advanced structural ceramics available today. Its unique combination of thermal, mechanical, and chemical properties makes it suitable for demanding industrial environments where reliability is critical.

Unlike conventional ceramic materials, silicon nitride offers excellent resistance to thermal shock, allowing heating plates to withstand rapid temperature changes without cracking. Its high mechanical strength and excellent wear resistance also contribute to a longer service life, even under continuous operation.

These properties make silicon nitride heating plates widely used in semiconductor manufacturing equipment, vacuum furnaces, laboratory instruments, industrial heating systems, and precision thermal processing applications.

The Challenges of Brazing Silicon Nitride

Although silicon nitride provides exceptional performance, joining it with metal components is far more complex than conventional metal-to-metal brazing.

Ceramics and metals expand at different rates when heated, creating internal stresses that can lead to cracks or joint failure if the brazing process is not precisely controlled. In addition, oxidation during heating can reduce bonding quality and compromise the electrical and mechanical performance of the finished component.

For manufacturers producing high-value ceramic assemblies, maintaining dimensional accuracy, joint reliability, and consistent product quality is essential. These requirements make advanced vacuum brazing technology the ideal solution.

Why Vacuum Brazing Is the Preferred Joining Technology

Vacuum brazing provides a clean, oxygen-free environment that enables reliable ceramic-to-metal joining without introducing contamination or oxidation.

The controlled atmosphere allows filler materials to flow evenly across the joint surfaces, creating strong metallurgical bonds while minimizing residual stress. Precise temperature control throughout the heating and cooling cycle ensures uniform thermal distribution, reducing distortion and improving overall product consistency.

Compared with conventional brazing techniques, vacuum brazing offers several important advantages:

• Oxidation-free processing for cleaner joints
• Superior bonding strength between ceramic and metal components
• Improved dimensional accuracy
• Consistent production quality across large manufacturing batches
• Longer service life for finished heating plate assemblies

These benefits have made vacuum brazing the industry standard for manufacturing advanced ceramic components.

Applications of Vacuum-Brazed Silicon Nitride Heating Plates

Silicon nitride heating plates produced through vacuum brazing are found in many high-technology industries where stable thermal performance is essential.

Some of the most common applications include:

• Semiconductor wafer processing equipment
• Vacuum deposition and coating systems
• Industrial furnaces
• Laboratory heating equipment
• Electronic manufacturing systems
• Advanced ceramic processing machinery

As semiconductor manufacturing continues to expand globally, demand for reliable ceramic heating components is increasing rapidly. Vacuum brazing ensures these components meet the strict quality standards required for precision manufacturing.

Why Manufacturers Choose Normantherm Vacuum Brazing Furnaces

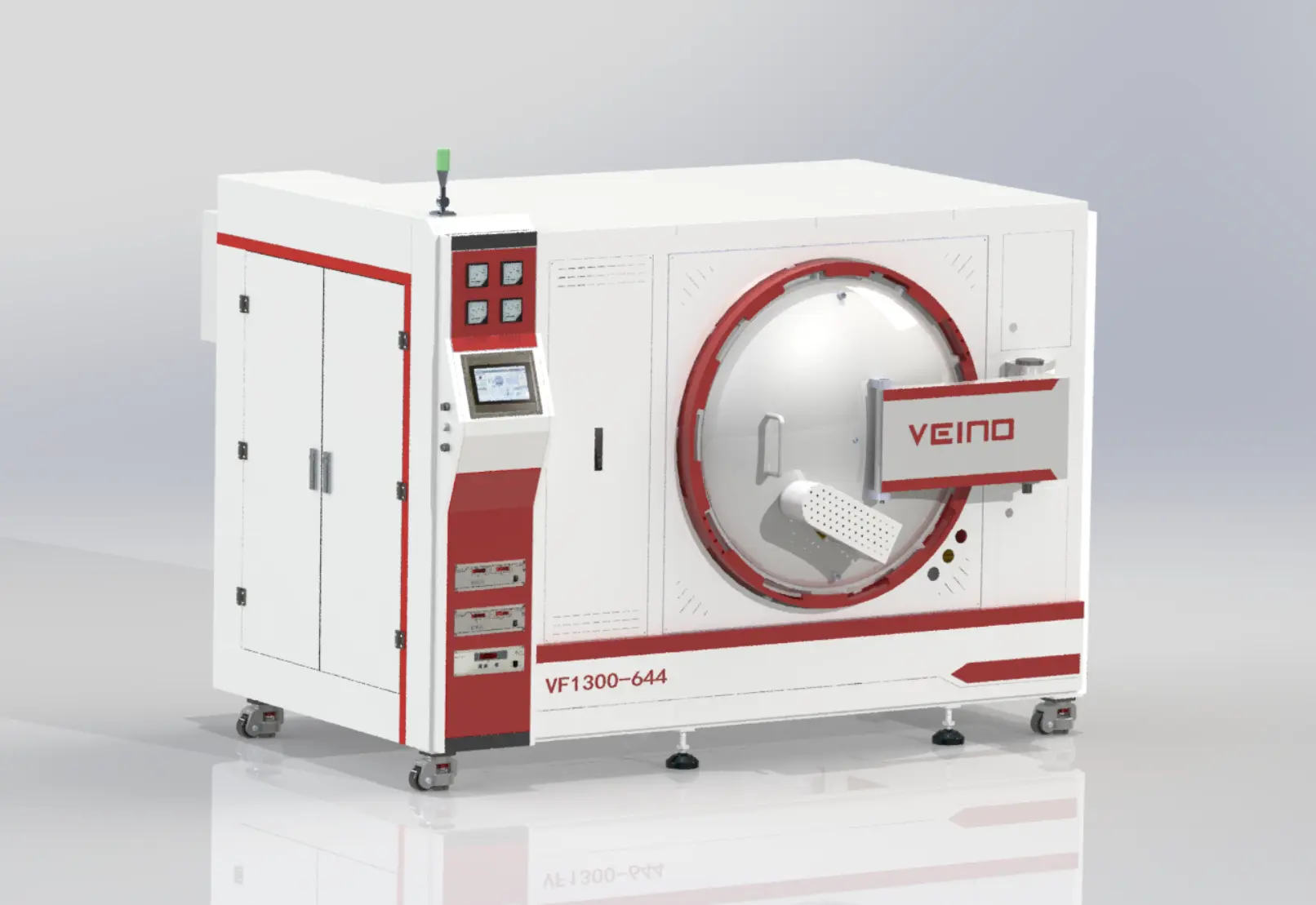

At Normantherm, we specialize in designing advanced vacuum brazing furnaces that support the production of high-performance ceramic and metal assemblies.

Our furnace systems are engineered to provide stable vacuum environments, precise temperature control, and excellent heating uniformity throughout the brazing cycle. These capabilities help manufacturers consistently produce silicon nitride heating plates with exceptional joint quality and long-term reliability.

Whether processing small precision components or large production batches, Normantherm vacuum furnaces deliver repeatable results that improve manufacturing efficiency while reducing product defects.

The Future of Ceramic Vacuum Brazing

The growing adoption of electric vehicles, semiconductor technologies, renewable energy systems, and advanced industrial automation is driving increased demand for high-performance ceramic components. Silicon nitride heating plates will continue to play an important role in these industries because of their superior thermal and mechanical properties.

As product designs become more complex, manufacturers require joining technologies capable of delivering consistent, high-strength bonds without compromising material performance. Vacuum brazing remains one of the most reliable and efficient solutions for meeting these evolving manufacturing requirements.

Conclusion

Silicon nitride heating plate vacuum brazing combines the advantages of advanced ceramic materials with precision thermal processing to produce durable, high-performance heating components. The oxidation-free environment, accurate temperature control, and reliable metallurgical bonding achieved through vacuum brazing ensure exceptional product quality and long service life.

With decades of expertise in vacuum furnace technology, Normantherm continues to provide innovative vacuum brazing solutions that help manufacturers achieve superior ceramic-to-metal joining for semiconductor, industrial heating, and advanced engineering applications.
