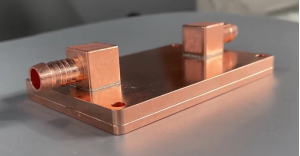

Finished Product of Vacuum Brazing of Copper Water-Cooled Plate

A finished copper water-cooled plate looks simple on the outside. But inside every channel and seam tells the story of precision manufacturing. Our vacuum brazing process turns raw copper components into finished plates that deliver strong leak-free joints and outstanding thermal conductivity.

The finished product starts as separate pieces: base plates flow channels and fittings. After thorough cleaning these components go into the vacuum furnace. The oxygen-free environment prevents oxidation while the brazing filler metal melts and flows into every joint. When the cycle ends the parts have become one solid assembly.

Every finished plate is inspected for joint integrity and leak resistance. Only plates that pass strict testing move forward. The result is a component you can install with confidence knowing it will hold pressure and transfer heat exactly as designed.

Cooling performance is reliable from the first hour of operation to the ten thousandth. The copper delivers its natural thermal conductivity without interruption from poor joints or internal voids.

These finished products are ideal for liquid cooling systems high-power electronics and advanced thermal management applications. When your system demands leak-free construction and consistent cooling vacuum-brazed copper water-cooled plates deliver.
