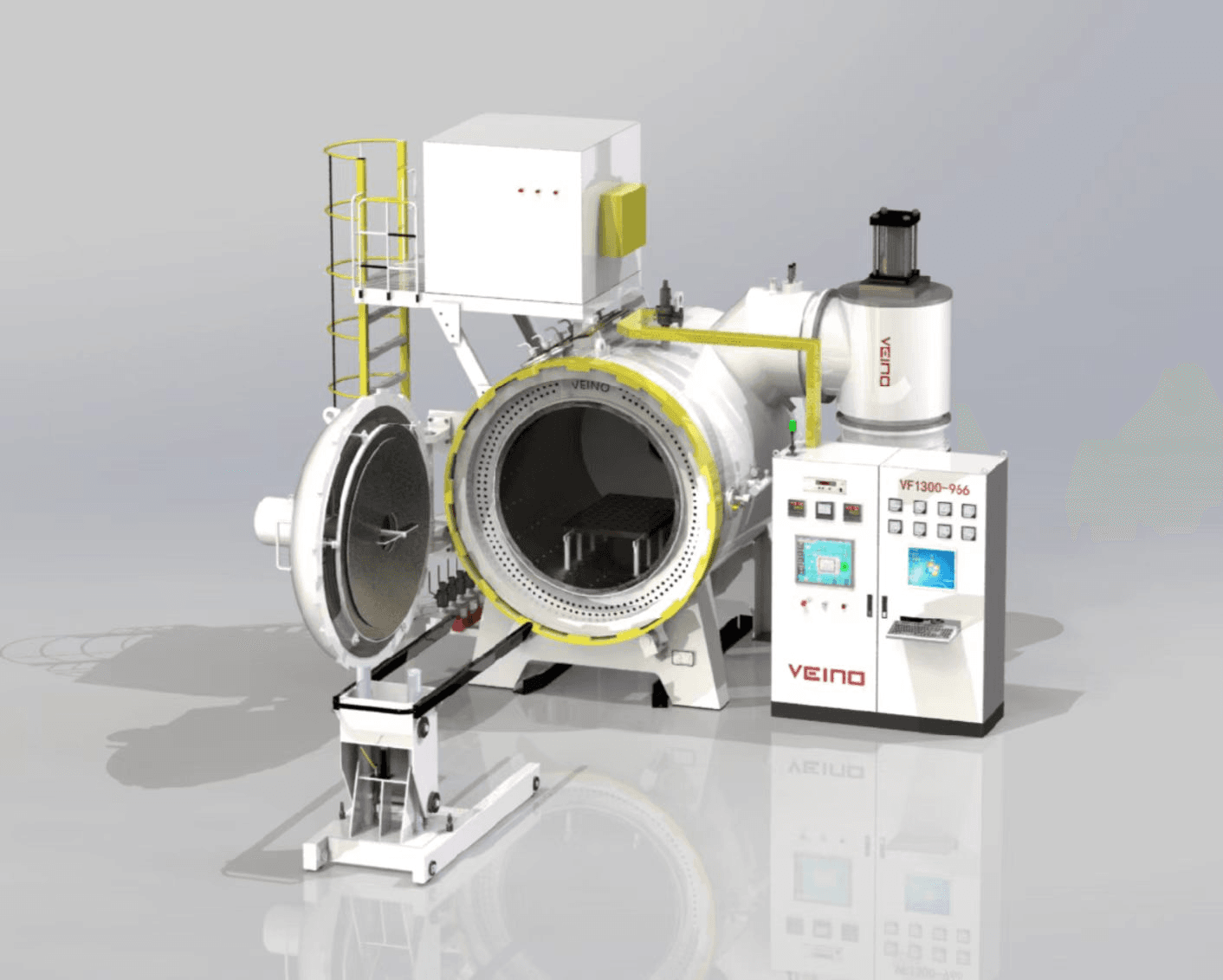

vf1300-1288 vacuum brazing furnace
Model: VF1300-1288
Category:
Applications:Vacuum brazing of stainless steel, titanium alloys, high-temperature alloys, and dissimilar metals. Vacuum annealing of metal parts to relieve internal stresses and improve ductility. Degassing and purification processes for electronic components and high-purity alloys. Heat treatment of aerospace parts, medical devices, automotive components, and precision tools. With precise temperature control, uniform heat distribution, and high vacuum capabilities, it supports demanding applications in aerospace, defense, electronics, medical manufacturing, and advanced metallurgy.
VF1300-1288 horizontal vacuum brazing furnace with 1300℃ max temp, ±1℃ control accuracy, 800kg load capacity, and high-efficiency vacuum and cooling systems—ideal for precision brazing, annealing, and sintering.
The VF1300-1288 Horizontal Vacuum Brazing Furnace is a high-performance, single-chamber industrial vacuum furnace designed for advanced vacuum heat treatment processes such as brazing, annealing, sintering, and degassing. It operates on 3-phase 380V/50Hz power and supports a working temperature up to 1200℃ with precise control (±1℃) and excellent uniformity (±5℃ at 850℃). The furnace features a robust structure with a 1200×800×800 mm effective heating area and can handle up to 800kg of load. Key components include a molybdenum heating chamber with multi-zone control, high-efficiency vacuum pumps (H-150, ZJP-1200 Roots, KT-800 diffusion, and BDR-30 maintenance), Omron PLC, Eurotherm 3504 temperature controller, and an intuitive Weiluntong HMI. It boasts a powerful 45kW cooling fan and 300kW total power rating with internal circulation cooling for rapid temperature reduction. The system is supported by a fully automated electronic control unit with paperless recording, vacuum interlocks, safety systems (over-temp, water cut-off), and real-time diagnostics. Additional features include a stainless-steel water cooling system, air source treatment unit, nitrogen inflation and pressure control, and a manual loading trolley. Built for precision, durability, and energy efficiency, the VF1300-1288 is ideal for industries requiring high vacuum integrity and temperature accuracy. With a manufacturing lead time of 4.5 months and a 12-month warranty, the equipment includes installation, commissioning, operator training, full technical documentation, and lifelong support.
Main Components (Boxed Format):
| 2.1 Equipment main parameters | |
Vacuum Chamber | 1288 |
Rated load | 500KG |
Equipment area | ≈3500mm(depth)*4200mm(width)*2900mm(height) |
| 2.2 Hot Zones | |
Heating Chamber | Molybdenum, 3-zone |
Diffusion Pump | KT-800 |
PLC | Omron CP Series |
Thermocouples | S-type & N-type |
Temperature control accuracy | ±1℃ |
Temperature field | ±5℃ (no load, 800℃ for 60 minutes, measured at 5 points) |
Heating rate | 1—20℃/min |
Power Controller | Thyristor 240kVA |
Heating element distribution type | Circumferential heating |
Heating power control mode | Digital display SCR+transformer |
Temperature control mode | PID intelligent adjustment |
| 2.3 Vacuum | |
Cold vacuum limit | ≤1.0*10 -3 Pa (Under no-load, clean, degassed, dry conditions) |
Thermal vacuum limit | ≤5.0*10 -3 Pa (no load, 800℃ insulation for 60min) |
Vacuum pumping speed | 26000L/S |
Vacuum efficiency | from 10 5 Pa to 5.0*10 -3 Pa takes ≤30 min (excluding diffusion pump warm-up time) |
Pressure rise rate | ≤0.3Pa/h (Under no-load, clean, degassed, dry conditions) |
| 2.4 Cooling method | |
Cooling method | Natural cooling/circulating air cooling |
| 2.5 Power Supply | |
power supply | Three-phase five-wire AC380V±10% 50HZ |
| 2.6 Cooling gas and driving gas | |
Driving gas | Compressed air 0.6-0.8MPa |
| 2.7 Water Cooling | |
Water cooling temperature and dosage | Inlet water temperature ≤30℃, 20T/h |
Water pressure | 0.3MPa |
