Vacuum Brazing of T2 Copper Microchannel Water-Cooled Plates for Optical Module Cooling

As data processing speeds increase and electronic components become more compact, efficient thermal management has become a critical requirement. Microchannel water-cooled plates made from T2 copper are widely used in optical modules and liquid cooling systems to manage high heat loads.

These advanced cooling components rely on precision manufacturing and reliable joining technology. Vacuum brazing has become the preferred method for producing high-performance microchannel cooling plates with leak-proof internal structures.

Why T2 Copper Is Ideal for Microchannel Cooling Plates

T2 Copper is widely used in thermal management applications due to its exceptional heat transfer properties.

Key advantages include:

• High thermal conductivity for efficient heat dissipation
• Excellent formability for microchannel structures
• Good corrosion resistance in controlled environments
• Reliable mechanical performance

These characteristics make T2 copper a preferred material for cooling solutions in high-performance electronics.

Microchannel Technology in Liquid Cooling Systems

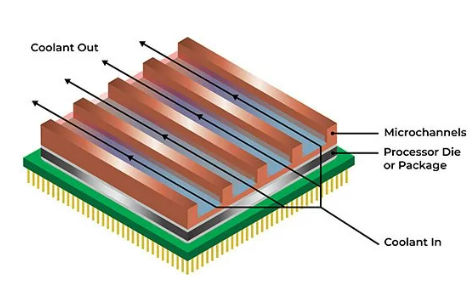

Microchannel cooling plates are designed with small internal channels that allow coolant to flow through the component. This increases the surface area available for heat transfer, improving cooling efficiency.

In optical modules, where space is limited and heat density is high, microchannel structures provide an effective solution for maintaining stable operating temperatures.

Challenges in Manufacturing Microchannel Cooling Plates

Producing microchannel water-cooled plates involves several technical challenges:

• Ensuring leak-proof sealing of internal channels
• Maintaining dimensional accuracy in complex geometries
• Preventing oxidation during high-temperature processing
• Achieving uniform bonding across large surfaces

Traditional joining methods often struggle to meet these requirements.

Advantages of Vacuum Brazing for Copper Microchannel Plates

Vacuum brazing provides a controlled environment that ensures high-quality joining of copper components.

Key benefits include:

• Oxidation-Free Processing

The vacuum environment prevents oxidation, preserving the thermal conductivity of copper.

• Leak-Proof Channel Formation

Vacuum brazing creates strong, uniform joints that ensure sealed internal channels.

• Uniform Heat Distribution

Even heating allows consistent bonding across complex microchannel structures.

• High Production Consistency

Batch processing ensures repeatable quality for industrial manufacturing.

Applications in Optical Modules and Indian Liquid Cooling Industry

In India, the demand for liquid cooling solutions is rapidly increasing due to the growth of data centers, telecom infrastructure, and high-performance computing.

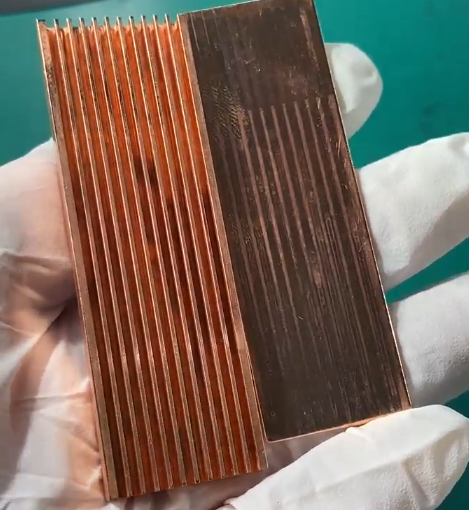

T2 copper microchannel cooling plates are widely used in:

• Optical communication modules
• Data center cooling systems
• Telecom equipment
• High-performance computing hardware
• Laser and photonics systems

Efficient cooling is essential to maintain performance and prevent overheating in these applications.

Normantherm Vacuum Brazing Solutions

At Normantherm, advanced vacuum brazing furnaces are designed for precision manufacturing of copper cooling components.

Our systems provide:

• High-vacuum environments for contamination-free processing
• Precise temperature control and uniform heating
• Reliable brazing of complex microchannel structures
• Consistent and repeatable production results

These capabilities enable manufacturers to produce high-quality cooling plates for advanced applications.

Conclusion

Microchannel water-cooled plates made from T2 copper are essential for efficient thermal management in optical modules and liquid cooling systems. Vacuum brazing ensures leak-proof channels, high thermal performance, and long-term reliability.

With advanced furnace technology and proven expertise, Normantherm supports the growing demand for high-performance cooling solutions in modern industrial and electronic applications.
