Pro Taper Gold

Why The Furnace Makes The File

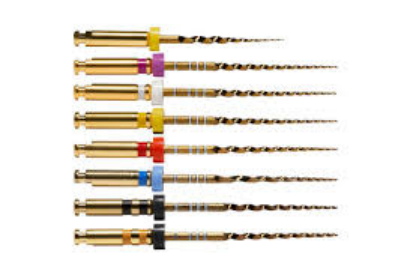

Pro Taper Gold is a rotary dental file by Dentsply Sirona, used in root canal treatment. When a tooth's nerve becomes infected or damaged, the dentist needs to clean and shape the narrow channel inside the root, and that's exactly what Pro Taper Gold does. It's a small, tapered, twisted metal file that spins at high speed inside the canal, removing infected tissue and preparing the space for sealing.

What sets it apart is its material. Made from a nickel-titanium (NiTi) alloy and put through a proprietary vacuum furnace heat treatment, Pro Taper Gold is significantly more flexible than conventional files. That flexibility is critical, root canals are rarely straight, and a file that bends naturally with the canal's curve is far less likely to fracture or distort the canal's shape during the procedure.

It comes in a sequenced set, with each file progressively larger, used one after another to gradually shape the canal to the correct size. For endodontists, it's one of the most reliable instruments available for the job.

What the Heat Treatment Does

NiTi alloy exists in two phases depending on temperature: stiff austenite and compliant martensite. Conventional NiTi files are fully austenitic at body temperature, super-elastic, but relatively firm. Pro Taper Gold's proprietary heat treatment shifts the alloy's transformation temperatures so the file retains a martensitic character at clinical temperature. The result is a measurably more flexible instrument with significantly better cyclic fatigue life.

Independent testing consistently shows Pro Taper Gold lasting 50 - 80% longer than Universal in standardized curved-canal fatigue protocols. In clinical terms, that margin matters; a file that fractures less often in difficult anatomy is a safer instrument.

Why Vacuum Is the Enabling Factor

This is where furnace quality becomes the deciding variable. Titanium oxidizes aggressively above 300°C. Even trace oxygen or nitrogen contamination during heat treatment can shift transformation temperatures by 10 - 20°C and create brittle surface zones, invisible defects that compromise fatigue life and mechanical consistency.

The Gold heat treatment is only reproducible under high-vacuum conditions (below 10 ^-4 mbar) or an equivalent inert atmosphere. Without that level of atmosphere control, batch-to-batch variation in Austenite finish (Af) temperature becomes unmanageable. Files processed in uncontrolled conditions may look identical but perform very differently, and in a precision surgical instrument, that inconsistency is unacceptable.

What Normantherm furnaces deliver for NiTi dental tooling:

· Vacuum levels sustained below 5*10^-5 mbar throughout the full thermal cycle

· Hot-zone temperature uniformity within ±3°C, verified per AMS 2750 pyrometry standards

· Fully programmable multi-stage ramp, soak, and quench profiles tailored to NiTi transformation requirements

· Integrated data logging for batch traceability and regulatory compliance

· Compatible with DSC-based process validation for Af/Mf verification

Normantherm vacuum furnaces are engineered specifically for the atmosphere integrity, temperature precision, and process repeatability that advanced dental instrument manufacturing demands.

For more information, you may contact us.
