PCD Milling Cutter Vacuum Brazing

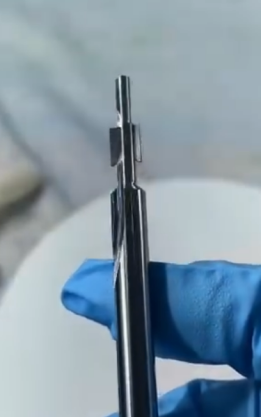

Manufacturing high-precision Polycrystalline Diamond (PCD) cutting tools demands an uncompromised thermal bonding process to withstand extreme mechanical loads during high-speed machining. As demonstrated by this mirror-finished PCD milling cutter assembly, securing the ultra-hard PCD inserts to the cemented carbide or steel tool body requires a joint free of voids and thermal micro-cracking. Because PCD is highly vulnerable to thermal degradation and graphitization if exposed to oxygen at elevated temperatures, utilizing standard atmosphere brazing risks destroying the diamond layer. A Normantherm high-vacuum furnace eliminates this risk by operating under deep vacuum levels (10^-3 Pa or lower), providing an entirely oxygen-free environment that preserves the raw hardness and cutting-edge sharp geometries of the PCD material.

The precision engineering of Normantherm furnaces ensures the active brazing alloys (typically silver- or copper-based with titanium additives) achieve optimal wetting and perfect capillary flow into the tightest insert pockets. Powered by advanced multi-zone temperature control and uniform radiative heating, our systems maintain a highly disciplined thermal ramp and a strictly controlled holding cycle. This meticulous temperature management allows for uniform interdiffusion at the bonding interface while mitigating residual thermal stresses between the radically different expansion coefficients of diamond and the tool shank. For high-end tool manufacturers, investing in a Normantherm vacuum furnace guarantees exceptional repeatable shear strength, flawless surface finishes straight out of the hot zone, and the production reliability required to meet top-tier industrial cutting standards.
